Cleanroom Laboratory SMT PCB Arc Ring ESD Plastic Trays Box 26 Slot Storage Rack Insert Plate Antistatic Tray
Its primary purpose is to fit inside a larger U-shaped ESD storage rack or box, dividing the main compartment into 26 individual, upright slots. It is constructed from static-dissipative material to prevent damage to Electrostatic Discharge (ESD)-sensitive devices.
| Name: |
ESD Arc Ring Plastic Tray |
| Material: |
Plastic
|
| Color: |
Black, or Customized |
| Size: |
450*190*110MM/medium size |
| Other Size |
410*190*110mm(small size) / 550*350*175mm(big size) |
| Feature: |
Antistatic |
| Application: |
Packaging Industry,Cleanroom Laboratory |
| Capacity: |
26 Slot
30 Slot (small size) / 33 Slot (big size)
|
Features & Breakdown:
1. Primary Function:
Organizational Insert: It is not a standalone container. It acts as a divider that slots into a larger, standardized "U-shaped" ESD storage box or rack, transforming a single large bin into multiple organized compartments.
2. ESD (Electrostatic Discharge) Protection:
Antistatic Material: Made from durable, static-dissipative plastic (often black PP or PE). This material safely grounds any static charge that builds up, preventing sudden discharges that can fry microchips, circuit boards, and other delicate electronics.
Component Safety: Essential for handling and storing integrated circuits (ICs), memory chips, CPUs, transistors, and other ESD-sensitive parts in manufacturing, repair (e.g., phone, laptop), and laboratory environments.
3. Design and Structure:
U-Shaped Design: The tray itself has a "U" shape, meaning it's open at the top and has three sides. This allows for easy visual identification and access to the components from the front.
26 Slots/Compartments: The insert features 26 individual, vertical slots. These are perfect for holding components in an upright position, preventing them from scratching or shorting against each other.
Modular and Stackable: The trays are designed to be used within stackable rack systems. Multiple boxes, each with its own insert, can be stacked on a shelving unit or cart for high-density, organized storage.
4. Typical Use Cases and Applications:
Electronics Manufacturing & Assembly Lines: For organizing components needed for a specific production batch.
PCB (Printed Circuit Board) Repair Shops: To hold various ICs and parts for different repair jobs.
Inventory Management: Organizing small parts in bins for easy counting and retrieval.
Laboratories and Testing Facilities: Keeping test samples and components separated and protected.

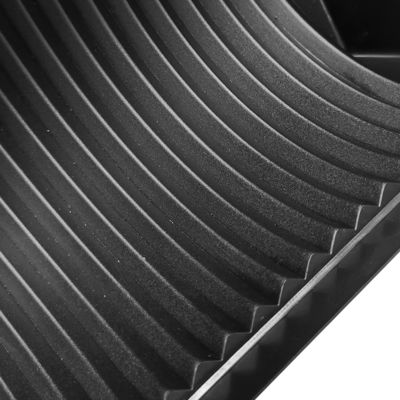

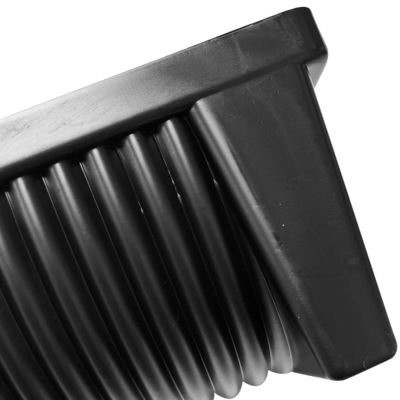

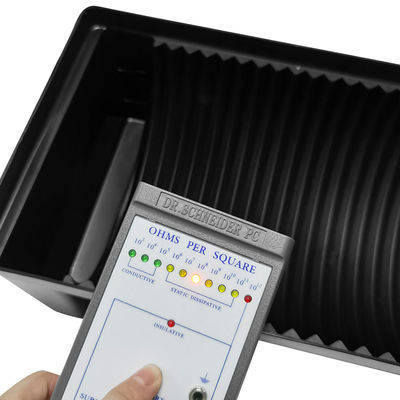

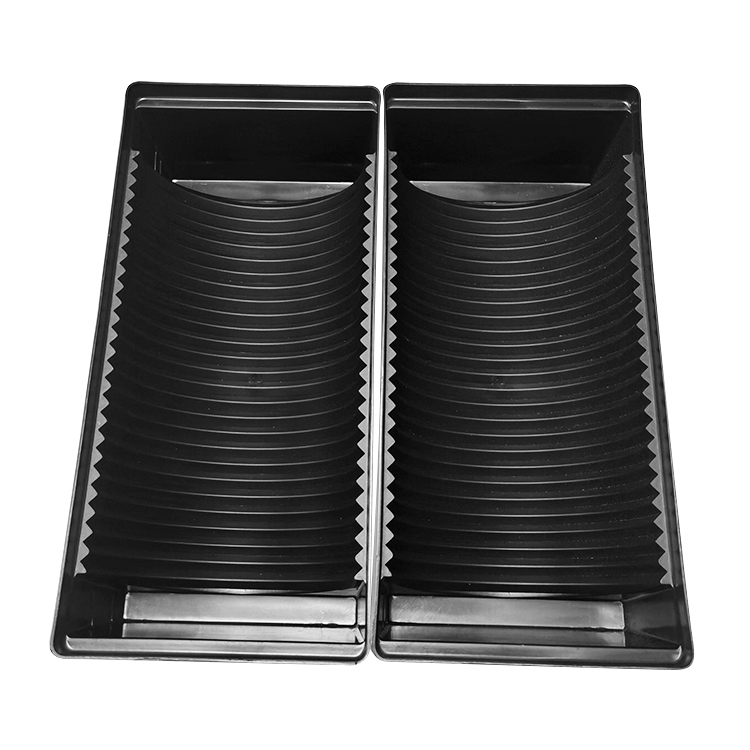

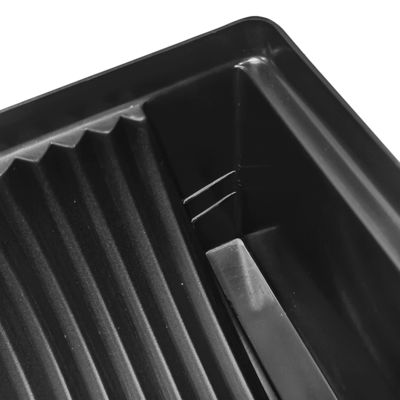

Picture:
