Conductive grid Oxford cloth waterproof and anti-static PU coating breathable, breathable, flame-retardant and fireproof workwear fabric
Description:
| Material |
98% Cotton+2% Conductive Filament+PU Flame Retardant |
| Available Color |
blue |
| Carbon Configuration |
5mm grid |
| Width (cm) |
150cm |
| Weight (gr/sqm) |
200 |

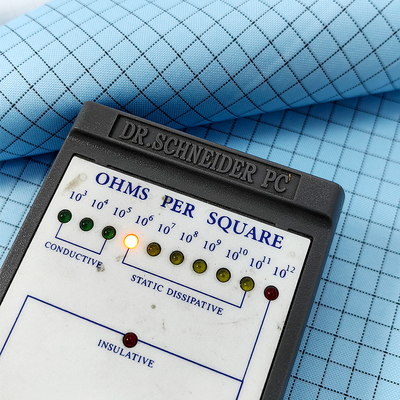

| Surface Resistivity (ohm/unit) |
10e6 ~10e8 |
| Friction charges (V) |
<300 |
| Density |
147*142 |
| Features |
Flame-Retardant,Anti-Static
|
Characteristics of flame retardant fabric:
1. Base Material: Oxford Cloth
A durable, tightly woven textile (typically nylon or polyester) with a signature basket-weave texture, known for abrasion resistance and structural strength.
2. Conductive Grid
Embedded conductive fibers (e.g., carbon or metal threads) to dissipate static electricity, preventing sparks or electrostatic discharge—critical in explosive or electronics-sensitive environments.
3. Waterproof PU Coating
A polyurethane (PU) layer applied to the inner or outer surface provides waterproofing by blocking liquid penetration while maintaining flexibility.
4. Breathable Properties
Microporous PU or moisture-wicking treatments allow water vapor (sweat) to escape, enhancing comfort during prolonged wear. May use technologies like ventilation membranes (e.g., similar to Gore-Tex).
5. Flame-Retardant & Fireproof
Treated with flame-retardant chemicals (e.g., Proban, Pyrovatex) or blended with inherently fire-resistant fibers (e.g., aramid, modacrylic) to meet standards like EN ISO 11612 (heat/flame resistance) or NFPA 2112.
6. Anti-Static Feature
Complementary to the conductive grid, this ensures static electricity is safely grounded, complying with standards like EN 1149-5 for explosive atmospheres.
Typical Applications:
Hazardous industries: Oil/gas, chemical plants, electrical utilities.
Emergency services: Firefighter gear (underlayers), rescue operations.
High-risk labor: Welding, mining, or aerospace, where multifunctional protection is required.
Advantages Over Standard Workwear:
Multifunctional: Combines waterproofing, breathability, flame resistance, and static control in one fabric.
Durability: Oxford weave resists tearing; PU coating adds longevity.
Safety Compliance: Meets stringent industry norms for flame/electrical safety.
ESD Fabric More Picture:
About Us:
Suzhou Quanjuda Purification Technology Co., LTD,Established in 2011, is a leading manufacturer and exporter of various ESD & Cleanroom products, offers a full line of ESD & Cleanroom equipment and supplies, providing comprehensive services by manufacturing, sourcing and exporting products from China.
